Type | Cores | Conductor | Insulation | Shielded Wires | Coaxial | Approximate Diameter | Electrical characteristics | ||
Cross section (mm2) | App. dia. (mm) | App. dia. (mm) | P*2*0.75 pairs | SYV 75 NO. | Thickness (mm) | Width(mm) | Conductor resistance(20℃) Ω/km | ||
TVVBPG-TV6 | 24 | 0.75 | 1.1 | 2.1 | 2(According to customer needs increase or decrease) | 1 (According to customer needs increase or decreas) | 9.0 | 62.5 | ≤26.0 |
30 | 68.8 | ||||||||
36 | 75.1 | ||||||||
42 | 81.4 | ||||||||
48 | 89.9 | ||||||||
54 | 96.2 | ||||||||
60 | 102.5 | ||||||||
24 | 1.0 | 1.34 | 2.6 | 11.4 | 75.0 | ≤19.5 | |||
30 | 82.8 | ||||||||
36 | 90.6 | ||||||||
42 | 98.4 | ||||||||
48 | 108.7 | ||||||||
54 | 116.5 | ||||||||
60 | 124.3 | ||||||||

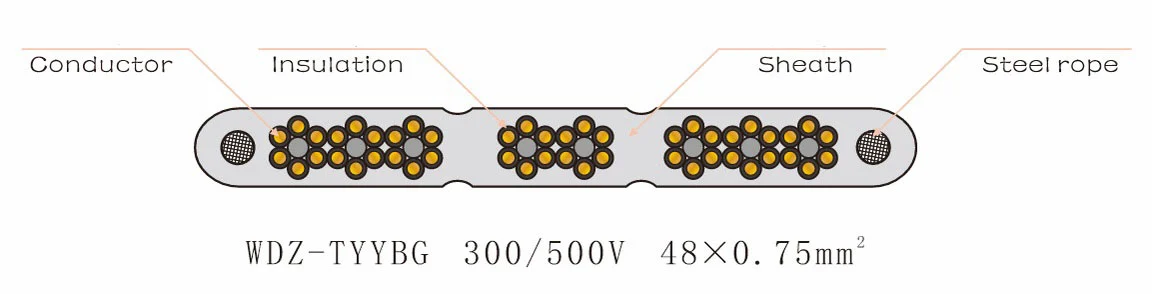

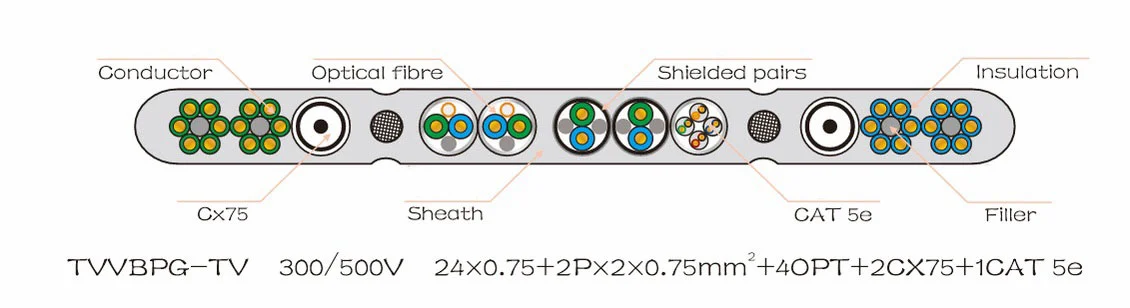

TVVBPG-TV | 12×0.75+1×1.5+2P×2×0.5+2S | 0.75 | 1.1 | 2.4 | 5.6 | 55.0 | ≤26.0 | ||
12×0.75+1×1.5+3P×2×0.5+2S | 5.6 | 59.0 | |||||||
14×0.75+1×1.5+2P×2×0.5+2S | 5.6 | 59.0 | |||||||
16×0.75+1×1.5+1P×2×0.5+2S | 5.6 | 60.0 | |||||||
16×0.75+1×1.5+2P×2×0.5+2S | 5.6 | 65.0 | |||||||
20×0.75+1×1.5+1P×2×0.5+2S | 5.6 | 74.0 | |||||||
Cores | Conductor | Insulation | Cable reference outer diam mm | Steel wire diameter (mm) | Approx. Weight (kg/km) | Electrical characteristics | |||
Cross section (mm2) | App. dia. (mm) | App. dia. (mm) | Conductor resistance(20℃) Ω/km | ||||||
WDZ-TYYPG-TV | 30*0.75/18AWG+4*2.0/14AWG+6P*2*0.5/20AWG+1CX75 | 0.75/18AWG | 1.1 | 2.4 | 36.0 | 6.0 | 1500 | ≤26.0 | |
49*0.75/18AWG+4*2.0/14AWG+4P*2*0.5/20AWG+1CX75 | 38.0 | 6.0 | 1750 | ||||||
60*0.75/18AWG+4*2.0/14AWG+6P*2*0.5/20AWG+1CX75 | 40.0 | 6.0 | 2100 | ||||||
33*0.75/18AWG+12*2.0/14AWG+10P*2*0.5/20AWG+1CX75 | 42.0 | 6.0 | 2280 | ||||||
30*0.75/18AWG+8*2.0/14AWG+4P*2*0.5/20AWG+1CX75 | 37.0 | 6.0 | 1750 | ||||||
39*0.75/18AWG+12*2.0/14AWG+10P*2*0.5/20AWG+1CX75 | 42.0 | 6.0 | 2430 | ||||||
29*0.75/18AWG+12*2.0/14AWG+10P*2*0.5/20AWG+1CX75 | 41.0 | 6.0 | 2240 | ||||||
AP can customize cables for customers, the products shown are only a part, and more models can be obtained online for more information | |||||||||
