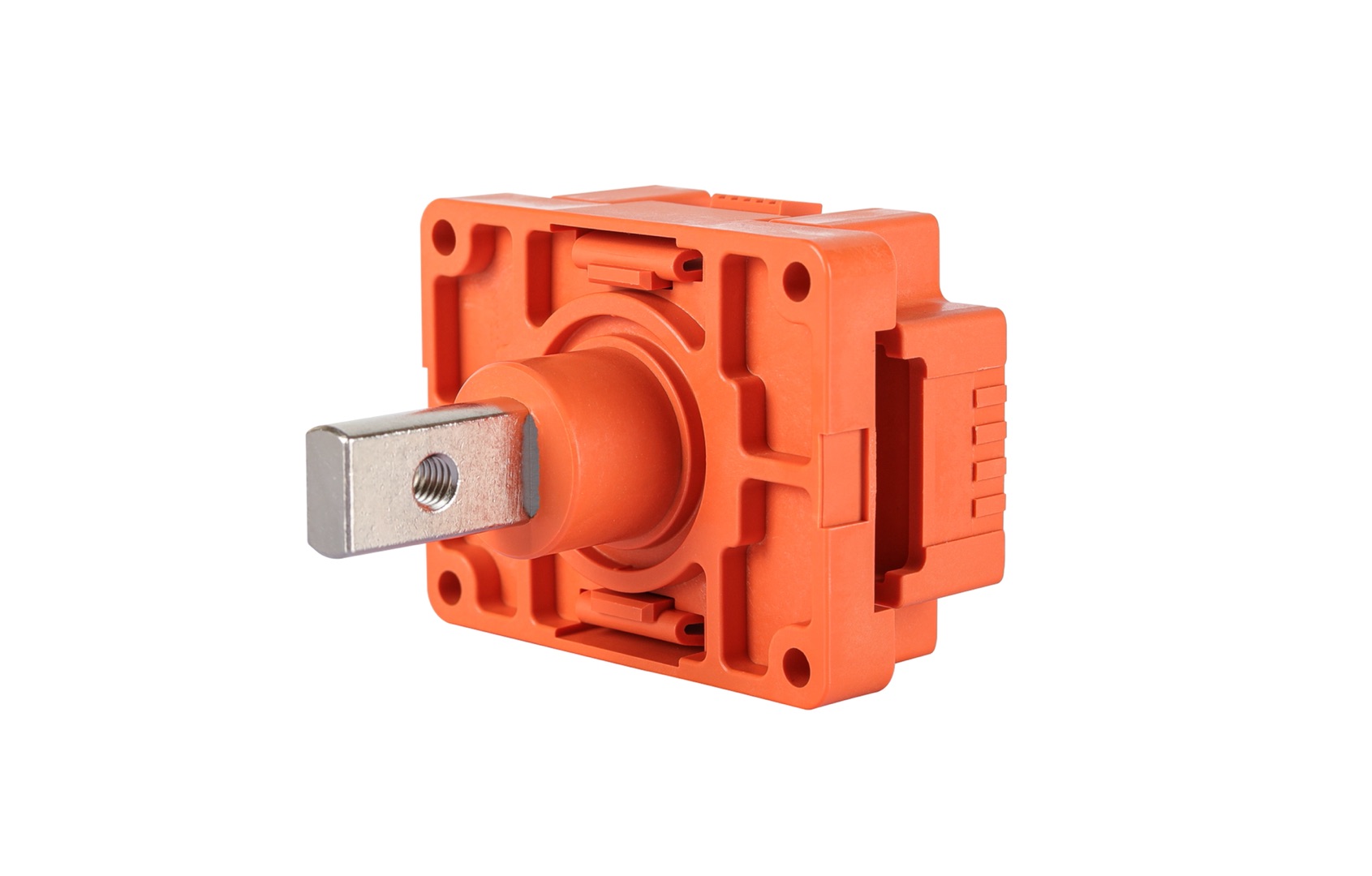

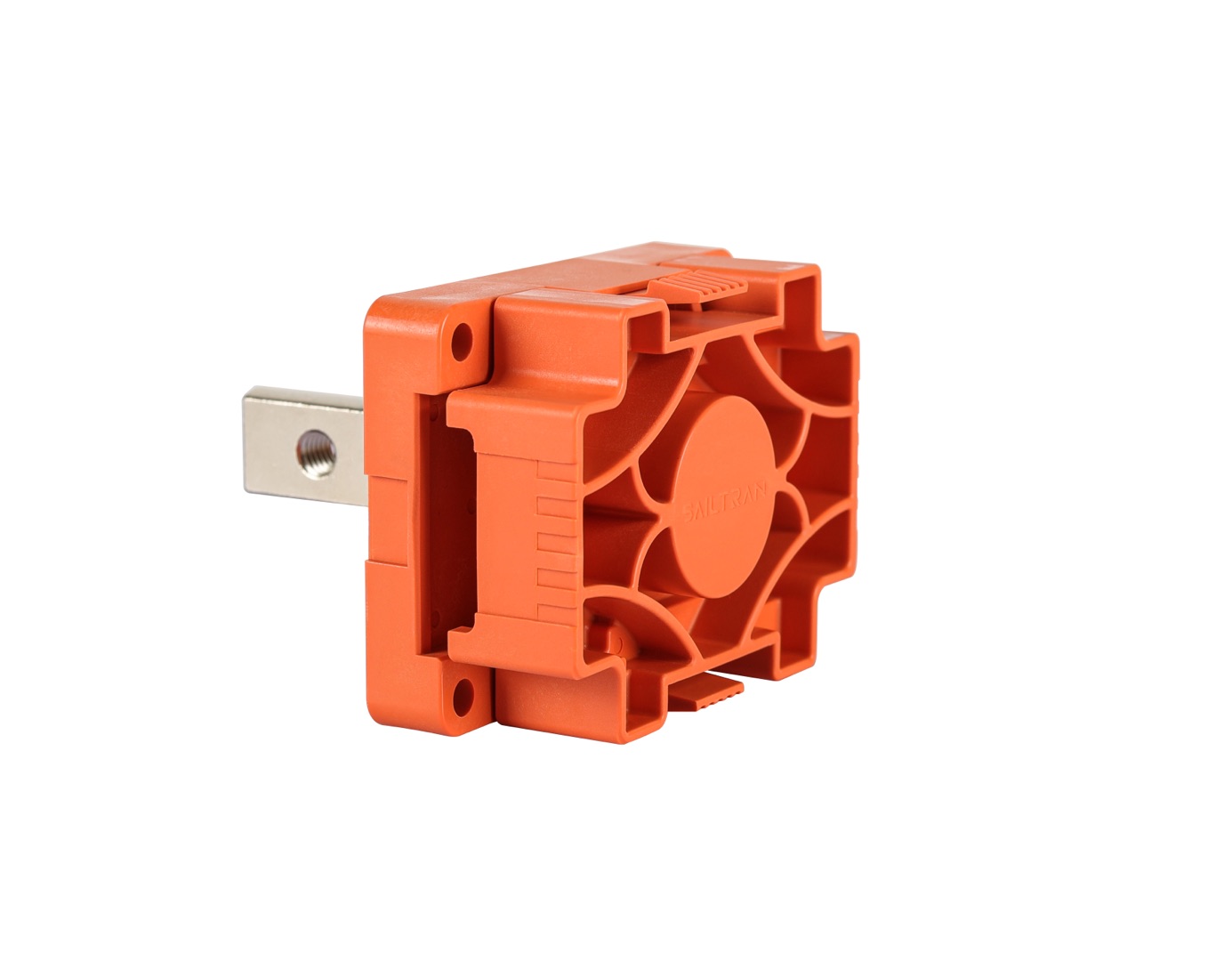

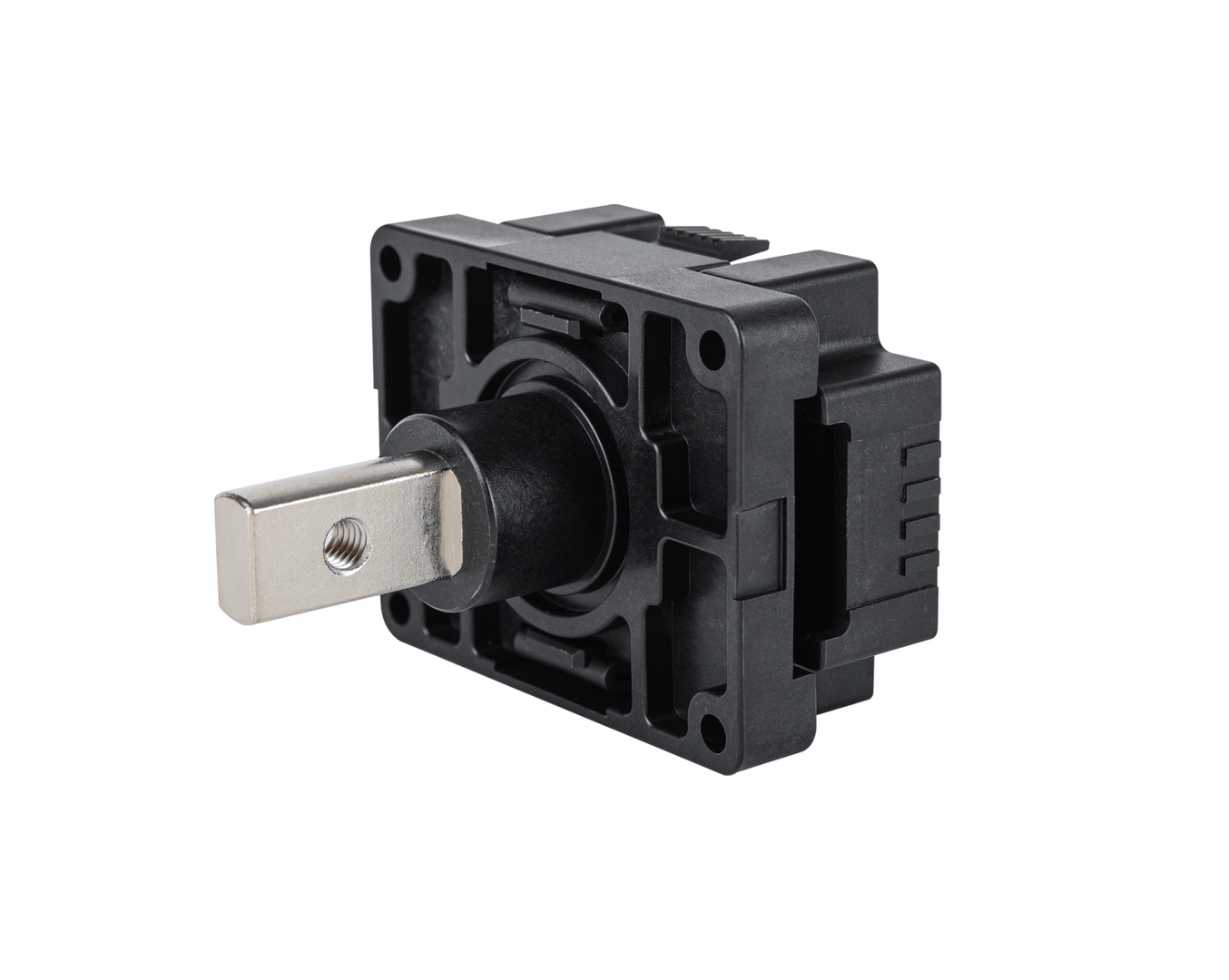

SS2 Series Connector for Energy Storage Connector

SS2 series copper bar energy storage connector is able to reach quick installation and quick replacement. This copper bar connector can be provided both waterproof and non-waterproof for customers to choose.


Features of SS2 Series Connector for Energy Storage Connector

  • Quick installation.

  • Quick dismantling for easy maintenance.

  • Diverse application fields: Modular design allows different currents.

  • SS2 Series is able to Realize the installation of two-way copper bars to avoid unnecessary replacement and re-installation of the base direction.

  • The protection level reaches IP65.

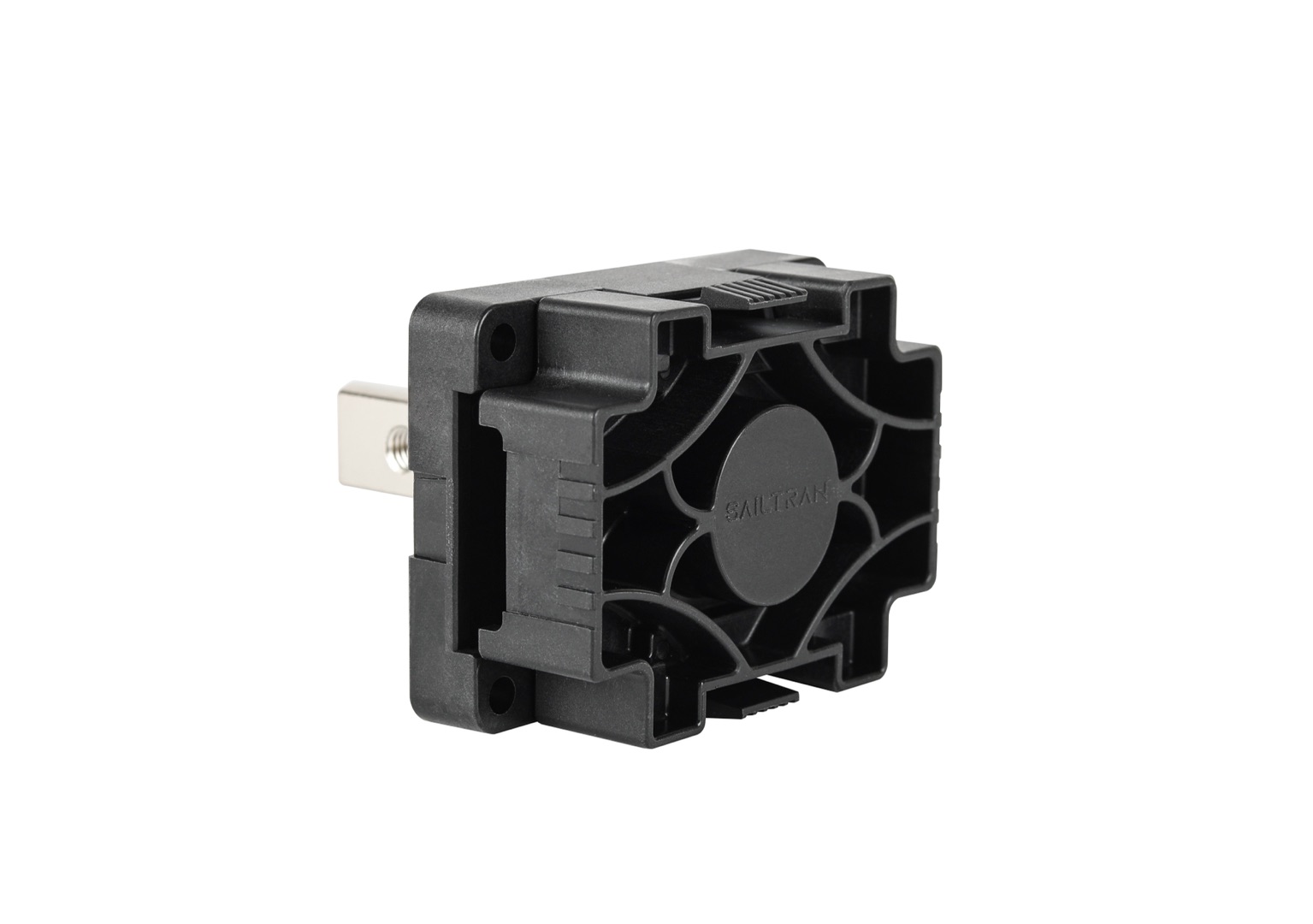

  • Available in a non-waterproof version with robust options.

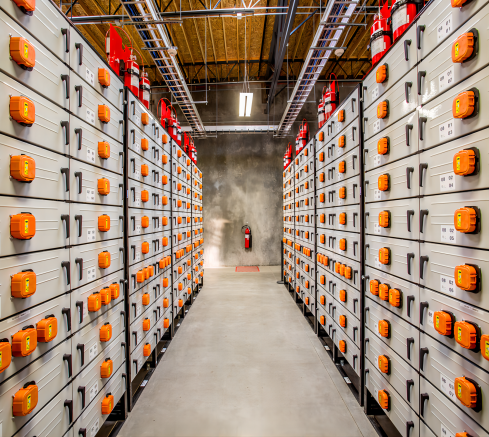

Applications of AP SS2 Series Energy Storage Connector

The high waterproof SS2 series copper bar energy storage connector brings a choice of high-quality connectors to the energy storage industry with a low cost.

Applications of AP SS2 Series Energy Storage Connector

Specifications of AP SS2 Series

TypeAP-SS2
working voltage1500V DC max
working current300A max
working temperature‘-40℃~+125℃
Mechanical liftAt least 20 times (non violent disassembly)
Insulation resistance500 MΩ min (at room temperature 25 ℃)
Withstand voltage3000V AC
Temperature rise<45K
Protection gradeIP65
