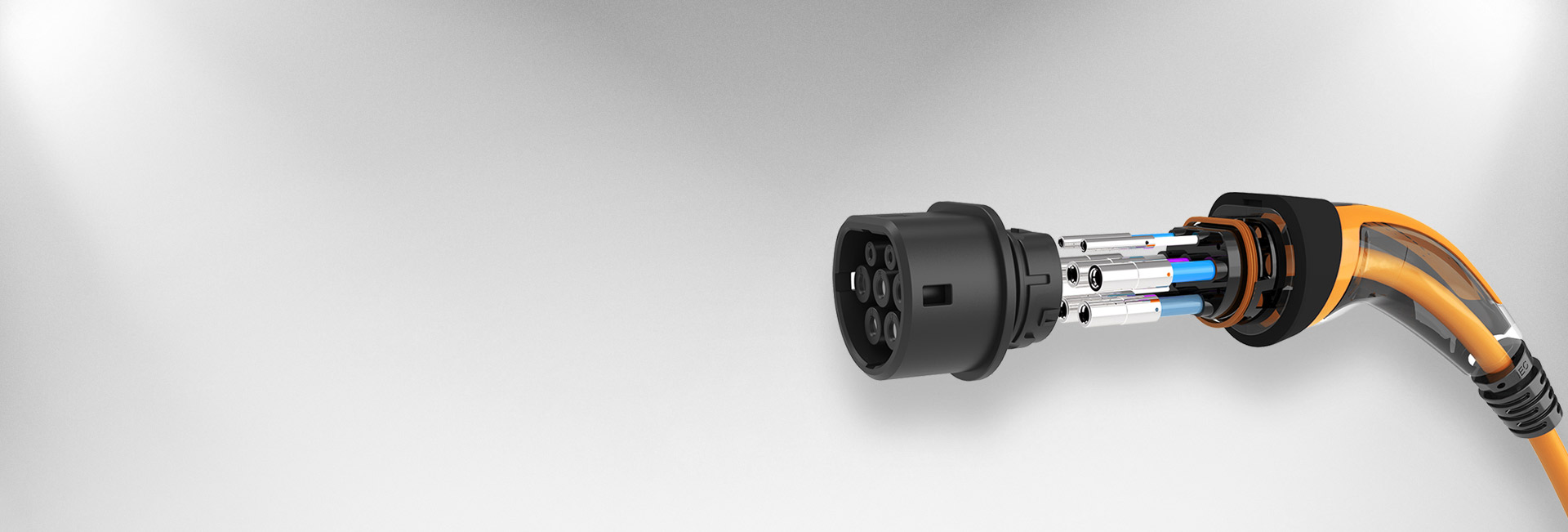

AC Charging Connector

AC Charging Connector

AUPINS AC charging pin conforms to global standards. It is equiped with the third generation technology, ergonomic design, and excellent protection performance. Our AC charging connector is able to reach IP55 water proof level in working condition. AUPINS also provides EV charger wholesale to all customers in need.

EV AC Charging Connector Types

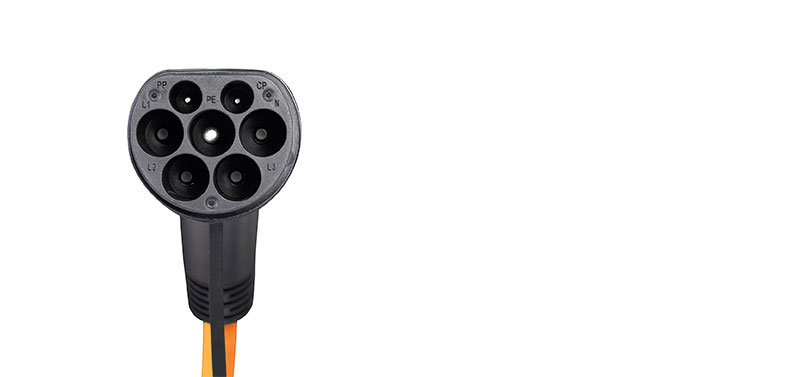

GB/T Charging Connector

GB/T Charging Connector

Comply with the regulations and requirements of GB/T 20234.2 Standard. It owns high-efficiency performance and reliable compatibility.
More Charging Connectors
IEC 62196-2 Charging Connector

IEC 62196-2 Charging Connector

Meet the demands of SAE J1772-2012, IEC 62196-2 2-l, fully satisfy the type1 customers.
More Charging Connectors

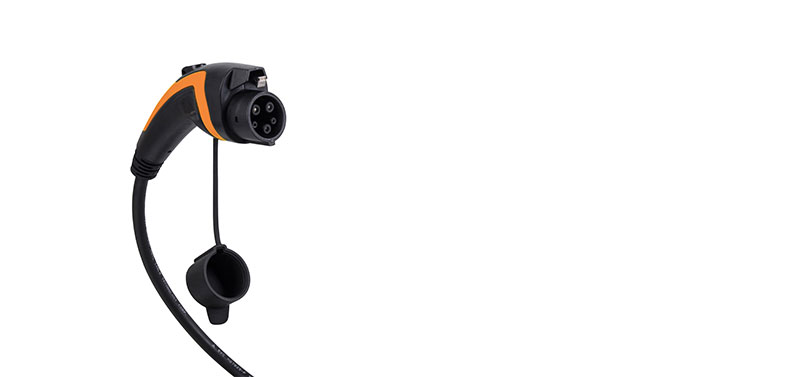

SAE J1772 Charging Connector

SAE J1772 Charging Connector

Conform to IEC 62196-2 2016 2-lle standard provisions and requirements with excellent protection performance.
More Charging Connectors

Different Standards of AC Charging Connector

SAE J1772 is the American standard type1, mainly refers to two charging voltages of 120V and 240V.
01

SAE J1772 is the American standard type 1.

It mainly refers to two charging voltages of

120V and 240V.

NEXT
IEC 62196 is the European standard type2, and the rated voltage is 230V and 480V.
02

IEC 62196 is the European standard type 2. The rated voltage of AC charging connector subject to IEC 62196 standard is 230V and 480V.


NEXT
GB/T20234 is the Chinese standard, using the general 220V household voltage.
03

GB/T20234 is the Chinese standard. And AC charging plug subject to this standard typically uses 220V household voltage.

NEXT

FAQs about AC Charging Connector

What is the difference between Level 1 and Level 2 charging stations?

Level 1 will deliver just 1.4kw to the vehicle while a level 2 ranges from 6.2 to 7.6 kw, and level 2 chargers need a 208-240V, 40A.


What type charger used in Europe?

Type 2 charger is widely used in Europe.


What's the working principle of AC charging connectors?

The OBC device is taking important role while alternating AC current to DC, then suppling power to lion battery pack.


AUPINS provides high performance Automotive Hard Silver Plating and Connectors for You.
