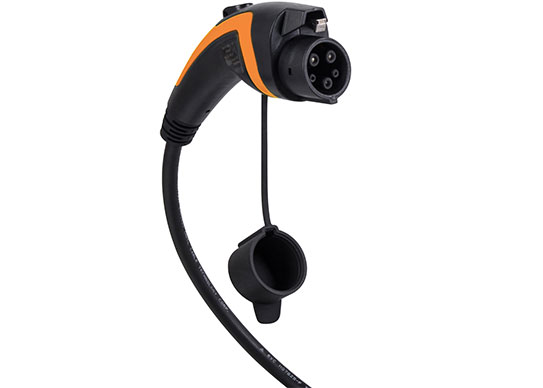

SAE J1772 Charging Connector

AP SAE J1772 combo AC EV charging plug conforms to SAE J1772 provisions and requirements. This charging connector boasts compatibility with a multitude of electric vehicle brands, offering versatility and convenience for owners of various vehicle models. Furthermore, the advanced safety of the SAE J1772 combo connector features guarantee peace of mind and protection throughout the entire charging process, prioritizing user safety above all else.

Features of SAE J1772 CCS Charger Connector

  • Conform to requirement of SAE J1772.

  • The bottom of the SAE J1772 socket terminal is designed with safety insulation to prevent direct human contact

  • Adopt bi-color coating technology, customized color accepted.

  • SAE J1772 charger plug prevents overheating hazards effectively, and the protection level IP55 (working condition) meets different situation.

Benefits of SAE J1772 Combo Connector

  • Universal Compatibility: The connector is widely adopted by electric vehicle manufacturers, ensuring compatibility across a broad range of EV models, including plug-in hybrids and battery electric vehicles.

  • Safety Features: The SAE J1772 EV plug connector incorporates safety features such as interlocking mechanisms and ground fault protection to prevent electrical hazards and ensure safe charging experiences.

  • Versatility: SAE J1772 combo supports both AC and DC charging, providing flexibility for charging infrastructure deployment and accommodating various charging needs, from slow overnight charging to fast DC charging.

  • Ease of Use: The connector features a user-friendly design with ergonomic handles and intuitive mechanisms, making it easy for users to connect and disconnect their vehicles for charging.

  • Reliability: SAE J1772 pins are built to withstand frequent use and harsh environmental conditions, ensuring reliable performance and longevity in charging applications.

SAE J1772 Charging Cable Specifications

Product codeAP-SAEAC
Rated current16A, 20A, 32A
Rated voltage120V, 250V
Insulation resistance>1000MΩ (DC500V)
Withstand Voltage2500V
Contact resistance0.5mΩMax
Pins temperature rise:<50K
