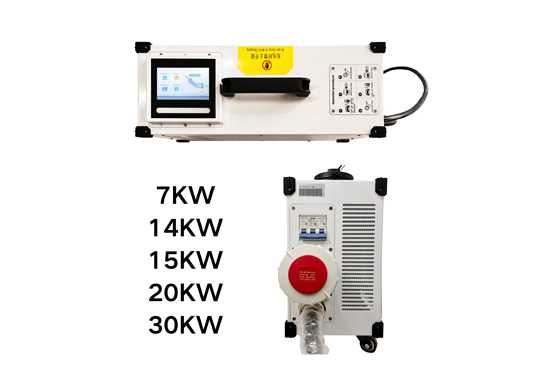

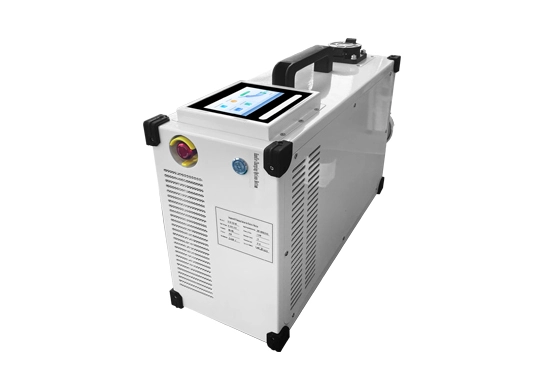

DC Movable Charger-MD

AUPINS is a professional supplier of new energy vehicle charging accessories, AUPINS is committed to providing services to achieve sustainable development of the electric vehicle (EV) industry. This DC movable electric vehicle charger adopts multiple safety measures, including over-current protection, over-voltage protection, short-circuit protection, leakage protection, etc., to ensure safe and reliable charging.

Get a Quote

Features of DC Movable Charger-MD

  • Easy to carry, small size, and lightweight

  • Unique patented technology, high protection level for outdoor use, and high heat dissipation efficiency

  • Support CCS-2/CCS-1/CHAdeMO connector (socket) optional

  • Support Ethernet or wireless communication

  • Exquisite appearance, simple operation, and easy installation

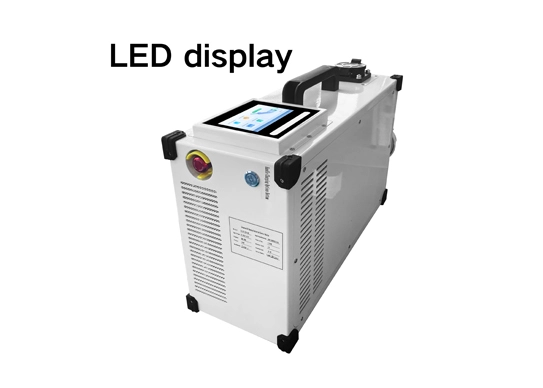

  • Interactive interface, 5-inch screen

Specifications of DC Movable Charger-MD

DC movable charger-MD

Code

Type

Output power(KW)

Output current(A)

Input current(A)

Display

17001

AP-TA-DC-7MD

7

20

32

5-inch display

17002

AP-TA-DC-14MD

14

20

32

17003

AP-TA-DC-15MD

15

25/37

25

17004

AP-TA-DC-20MD

20

32

32

17005

AP-TA-DC-30MD

30

16

45

Charging protocol: GBT27930/CHADEMO 2.0/ DIN 70121 OCPP 1.6(JSON)/ISO15118


Applications of DC Movable Charger-MD

1. Mechanical properties:

Display: 5-inch display

Input cable length: 0m (customizable)

Cable length: 3m (customizable)

Weight: 20KG/25KG/28KG

Size (mm): 450*150*310/500*200*320

Certification: CE, ROHS

Interface standard: CCS /CHADEMO /GB/T


2. Electrical performance:

Output power: 7KW/14KW/15KW/20KW/30KW

Output voltage: 200-750V (200-1000V optional)

Output current: 20A/25A-37A/33A-50A/75A- 100A

Input voltage: 220V -480V

Input current: 25A/32A/45A

Input connection: P+N+PE/ 3P+N+PE

Frequency: 50/60 Hz


3. Environmental performance:

Operating temperature: -20C to +50℃

Protection level: IP 54

Altitude: 2000m

Working relative humidity: RH≤95%
