dc charging station fx 1
dc charging station fx 1
dc charging station fx 1

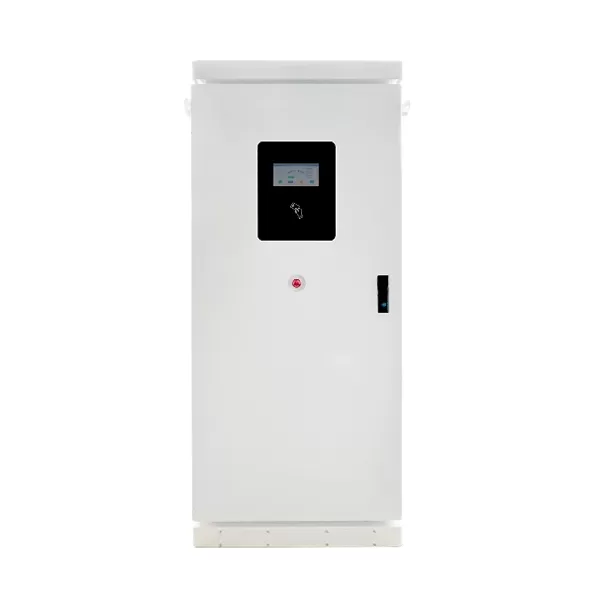

DC Charging Station-FX

As a professional new energy vehicle parts supplier, AUPINS is committed to providing services for the sustainable development of the electric vehicle (EV) industry. This DC charging station supports most electric vehicle brands and models on the market, and can automatically match and start the charging process. At the same time, we also use multiple safety protection mechanisms, including over-current protection, over-voltage protection, short-circuit protection, and leakage protection.

Get a Quote

Features of DC Charging Station-FX

  • Low standby power consumption, the whole machine standby power consumption is less than 5w, reducing operating costs.

  • Unique patented technology, meeting the protection level for outdoor use

  • Applicable to more models, compatible with DC input, and has wider application scenarios

  • Configurable plug-and-play, card swipe plus password, scheduled charging

  • Connect to OCPP/cloud fast charging to achieve commercial OEM+ODM

  • Complete safety protection, the AC side can be disconnected in case of emergency shutdown, which is more reliable

Specifications of DC Charging Station-FX

DC charging station-FX

Code

Type

Output power(KW)

Output current(A)

Input current(A)

Display

23001

AP-TA-DC-240FX

240

0-250

400

7-inch color touchscreen

Charging protocol: GBT27930/CHADEMO 2.0/ DIN 70121 OCPP 1.6(JSON)/ISO 15118


Applications of DC Charging Station-FX

1. Mechanical properties:

Display: 7-inch color touchscreen

Input cable length: 0m (customizable)

Cable length: 5m (customizable)

Number of guns: one/two (CCS-1/CCS-2/CHAdeMO/GBT)

Charging mode: fast or slow charging, automatic switching

Charging mode: ARD/APP/manual

Weight: 320KG

Size(mm): 730*500*1700

Interface standard: CCS /CHADEMO /GB/T

Standard configuration: CAN/485

Ethernet optional configuration: GPRS/4G


2. Electrical performance :

Output power: 240KW

Output voltage: 200-750V (200-1000V optional)

Output current: 0-250A

Input voltage: AC 380V±20%

Input current: 400A

Frequency: 50/60 Hz


3. Environmental performance:

Operating temperature: -20C to +50℃

Protection level: IP 54

Altitude: 2000m

Working relative humidity: RH≤95%
