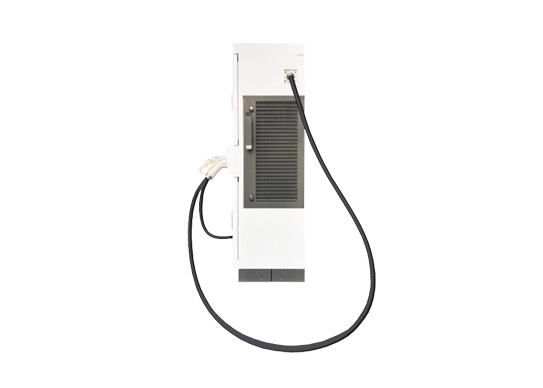

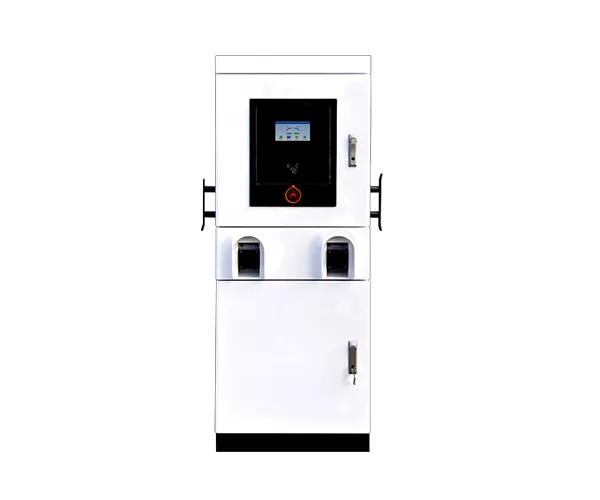

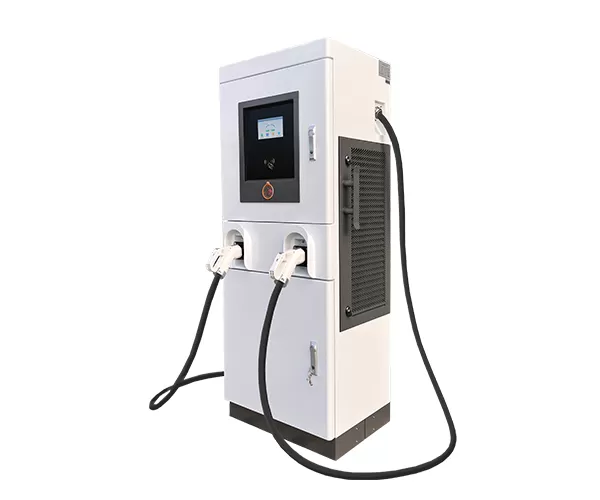

DC Charging Station-FQ

As a professional supplier of new energy vehicle charging accessories , AUPINS is committed to providing services to achieve sustainable development of the electric vehicle (EV) industry. AUPINS's DC charging station has a built-in intelligent system that supports remote monitoring and operation. The charging status is clear at a glance and easy to operate. It is compatible with most electric vehicle brands and models on the market, automatically matching charging solutions to ensure charging efficiency.

Get a Quote

Features of DC Charging Station-FQ

  • Fashion patented design

  • Meet the protection level for outdoor use

  • Applicable to more models, compatible with DC input, and has wider application scenarios

  • Configurable plug-and-play, card swipe plus password, scheduled charging

  • Connect to OCPP/cloud fast charging to achieve commercial OEM+ODM

  • Complete safety protection, the AC side can be disconnected in case of emergency shutdown, which is more reliable

Specifications of DC Charging Station-FQ

DC charging station-FQ

Code

Type

Output power(KW)

Output current(A)

Input current(A)

Display

22001

AP-TA-DC-160FQ

160

200

0-230

7-inch color LCD

22002

AP-TA-DC-180FQ

180

250

0-285

Charging protocol: GBT27930/CHADEMO 2.0/ DIN 70121 OCPP 1.6(JSON)/ISO 15118


Applications of DC Charging Station-FQ

1. Mechanical properties:

Display: 7-inch color LCD

Input cable length: 0m (customizable)

Cable length: 5m (customizable)

Number of guns: one/two (CCS-1/CCS-2/CHAdeMO/GBT)

Charging mode: fast or slow charging, automatic switching

Charging mode: ARD/APP/manual

Weight: 358KG/368KG

Size(mm): 197*97*67

Interface standard: CCS /CHADEMO /GB/T

Standard configuration: CAN/485

Ethernet optional configuration: GPRS/4G


2. Electrical performance:

Output power: 160KW/180KW

Output voltage: 200-750V (200-1000V optional)

Output current: 200A/250A

Input voltage: AC 380V±20%

Input current: 0-230A/0-285A

Frequency: 50/60 Hz


3. Environmental performance:

Operating temperature: -25℃~+50℃(derating above 50℃)

Protection level: IP 54

Altitude: 2000m

Working relative humidity: RH≤95%
