Hard Silver Plating & J1772 Pins Wholesale, Contact Pins Supplier

Contact Pins For Sae EV Charging Plug Types

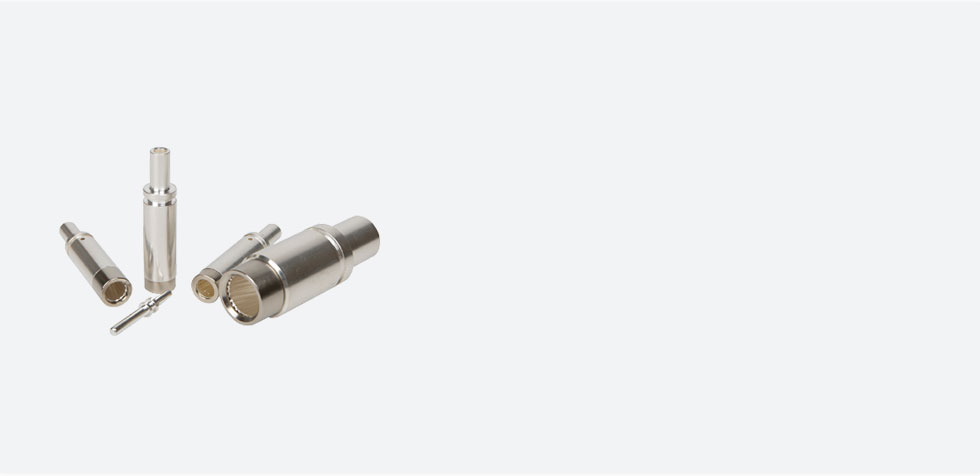

DC CCS Type1 Connect Pins

Comply with the regulations and requirements of DC SAE standards. It equips safe installation and connecting, and an anti-shock design.

More Charging Connectors 

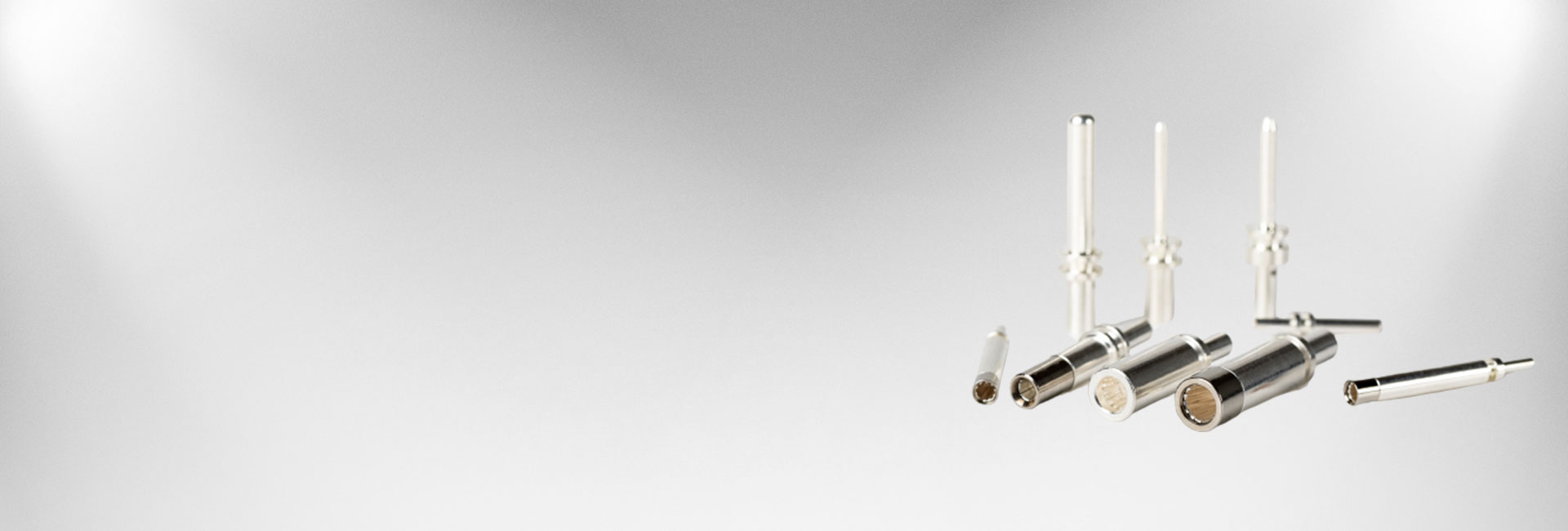

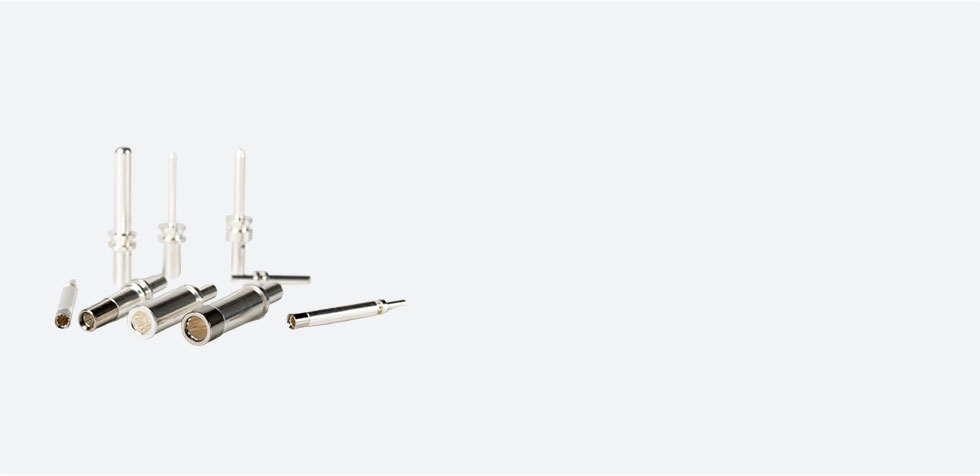

AC SAE Contact Pins

Conform to the regulations and requirements of AC SAE standards. It owns high ampacity and low- temperature rise. This SAE standard pins also have a soft mating force to improve users' experience.

More Charging Connectors 

Contact Pins Features

Smaller size: AP terminals are not only particularly efficient but also with space-saving and high-current-carrying connectors.

Low resistance: AP provides the best user experience specifically designed for consumer product applications by keeping the temperature and energy loss in an efficient level

Long life cycle: The features of HBS terminals are over 20000 cycles with superior stability.

Soft pulling force: AP high-current connectors are designed with special structure. This will facilitate user experience by soft pulling force.

FAQs about Contact Pins For Sae EV Charging Plug



How many types pins in SAE charger?

 

There are 5 pins in SAE AC charger and 2 more in DC charger. They are LN, PE, CC, CP pins.



What does LN pin standard for?

 

LN pins is two pin, L standard for live and N for neutral. L pins help to transfer power in charging period and N pins to create a loop in the system.



Why charger need CC pin?

 

CC terminal helps people to confirm connect status, if it connects right way. CC pin will send signal to AC station and show on the screen.

AUPINS provides high performance Automotive Hard Silver Plating and Connectors for You.
