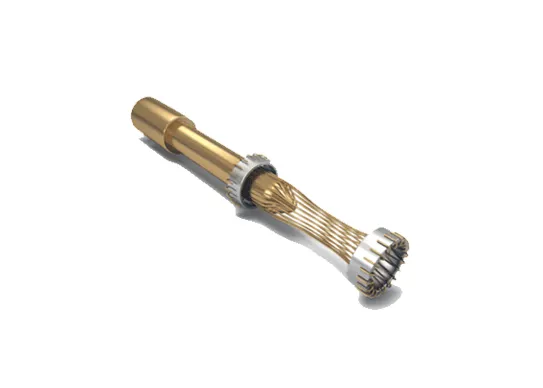

AUPINS Pogopin Hypertac Hyperboloid Contact

Name: AUPINS Pogopin Hypertac Hyperboloid Contact
Brand: Aupins Technology Co., Ltd.
Availability: InStock

The AUPINS Pogopin Hypertac Hyperboloid Contact is a High reliable and high precision electrical connector metal part designed for electric connect power supply applications. It is widely used in electrical connections, high precision Power supply in the industry of military scenario. Engineered for durability and efficient conductivity, it ensures stable electrical transmission for the power source components. The power range could reach 1A MAX, DC 12V.

Get a Quote 

Features of AUPINS Pogopin Hypertac Hyperboloid Contact

Low cost of ownership - Does not need replacement during equipment life

Reduced system costs - Equipment design is less critical

Reduced qualification costs - No re-testing due to contact failures

Shock and vibration proof - operates in demanding environments ensuring failure free performance

Low insertion/extraction forces

High current and voltage ratings

Low electrical contact resistance

Long life and low rate of wear

Low contact resistance and low mating force

Specifications of AUPINS Pogopin Hypertac Hyperboloid Contact

Mechanical Performance：

Material: Brass, Copper

Contact material: BeCu C17200

Plating Material: Gold or silver 1.27 micro-inch minimum Au over 50~100 micro-inch nickel

Tips: Customized according to requirements,To avoid arcing issue,The adaptor start to power supply after connector mated fully.

Electrical performance:

Mechanical life: ≧1,000 times

Operating temperature: -40℃~125℃

Why Choose AUPINS Pogopin Hypertac Hyperboloid Contact?

AUPINS team offers global customers a one-stop solution for charging-related products, including electrical terminal pin and EV charge solution and components. Currently, AUPINS' terminal products are now powering tens of thousands of electric vehicles worldwide, maintaining a perfect safety record with zero burnouts to date. Our vision is to become a global leader in our industry by leveraging cutting-edge technology, rigorous scientific analysis, and strategic collaborations with pioneers, innovators, and key opinion leaders (KOLs) in renewable energy, information technology, and AI.

AUPINS Server Hashrate AI PCB Power Supply High Current Charging Terminal Pin
Category	Specification
Product Name	AUPINS Server Hashrate AI PCB Power Supply High Current Charging Terminal Pin
Connector Type	Male Pin / Female Pin
Mounting Method	PCB Soldering / Through-hole / Custom
Application Standard	GB/T 20234.2-2015
Electrical Performance
Rated Voltage	Up to 250V AC (application-dependent)
Rated Current	60A / 120A / 1000A (varies by pin spec)
Contact Resistance	≤ 0.5 mΩ
Insulation Resistance	≥ 1000 MΩ
Withstanding Voltage	≥ 2000V AC (1 min)
Insertion & Extraction Life	≥ 10,000 cycles
Temperature Rise	≤ 50K at rated current
Mechanical Performance
Contact Material	Copper alloy, silver-plated
Plating	Silver Plated
Fixing Type	PCB fixed / screw locking / snap-fit optional
Insertion Force	45–80 N
Extraction Force	40–70 N
Environmental & Safety
Operating Temperature	-40°C to +125°C
Vibration Resistance	High – designed for automotive and industrial vibration conditions
Impact Resistance	Excellent – designed for repeated mechanical operation
Protection Rating	N/A (Depends on housing and integration)
Certifications	CE, TUV,GB/T compliant
