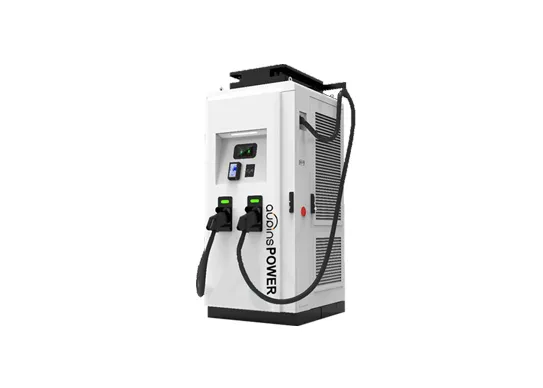

AUPINS EF400 series 360 kw/400kw Public DC Quick Charger

Name: AUPINS EF400 series 360 kw/400kw Public DC Quick Charger
Brand: Aupins Technology Co., Ltd.
Availability: InStock

The AUPINS EF400 Series 360kW/400kW Public DC Quick Charger offers excellent mechanical strength and environmental protection. Advanced safety features, including over-voltage, over-current, short-circuit, and over-temperature protection, ensure stable and secure operation.

Supporting OCPP 1.6J and integrated communication protocols such as CAN and RS485, the EF400 Series can be easily connected to smart charging networks. It is suitable for installation in both public locations—such as urban areas, airports, and shopping centers—and commercial environments, including business parks and fleet depots.

Get a Quote 

Features of AUPINS EF400 series 360 kw/400kw Public DC Quick Charger

High power DC fast charging up to 360kW/400kW with flexible voltage and current ranges

Multi-standard connector compatibility (CCS1, CCS2, CHAdeMO, GB/T), single or dual gun options

Robust metal enclosure for durability and impact resistance

Comprehensive electrical protections for safe and reliable operation

Advanced communication interfaces for integration with smart grid and network management systems

Scalable input/output cable length customizable per site requirements

Multi Language supported

OTA Support:Remote monitoring, remote diagnosis and remote upgrade

Tailored for Global Markets / Market Compatibility

AUPINS EF400 Series

Input Voltage: AC 400V ±10%, 3-phase + neutral + PE

Input Frequency: 50/60 Hz

Maximum Power: 240kW / 320kW / 360kW / 400kW

Output Current: Max 583A/642A

Applicable Scenarios: Public fast charging stations, commercial fleet charging, highway rest stops, EV service centers

Working Humidity: 5%–95% (non-condensing)

Working Temperature: -30°C to +50°C

Working Altitude: ≤2000m

Enclosure protection grade: IP54,IK10

Protection:Over-voltage, under-voltage, over-current, short circuit, over-temperature protections integrated

Product Certification: DEKRA certified CE, EN 61851-23:2014 + EN 61851-23:2014/AC:2016-06, IEC 61851-21-2: 2018, EN IEC 61851-21-2: 2021

Accessories: Cable management balancer reel

Compatible with all EVs using the CCS fast charging standard, it offers charging power of up to 400kW, enabling efficient and reliable DC fast charging for a wide range of electric vehicles. After user identification through RFID, credit card, or mobile app, users simply connect the charger’s output plug to the EV to begin a secure and high-speed charging process.

Multiple output configurations are available, including single DC, dual DC, or even triple output (DC+AC) simultaneously. Battery status and charging progress are clearly displayed, and users may terminate the session at any time using listed commands.

1.Up to 360 kw/400kw DC charging with modular design

2.Dual CCS-2 charging connectors, support simultaneous charging

3.RFID, credit card and Mobile APP user identification options

4.OCPP 1.6J connectivity (WS & WSS) for easy integration

5.Multiple network options (Ethernet, GPRS and LTE)

6.10” color screen with unique user interface

7.Balancer reel advanced cable management

8.Metal casing for extending life period

9.Various languages interface for easy operation

Why Choose AUPINS EF400 series 360 kW/400kw Public DC Quick Charger?

The AUPINS EF400 series 360 kW/400kw Public DC Quick Charger delivers high-efficiency, reliable fast charging suitable for a wide range of EV models and operational scenarios. Its modular design, broad compatibility, and advanced protections make it an ideal solution for public and commercial fast charging deployments. Backed by support for industry-standard communication protocols, it enables seamless integration with charging networks, helping operators deliver a superior charging experience.

AUPINS EF400 series 240kW/320kW/360kW/400kw Public DC Quick Charger
System
Charging type	Mode 4, 360kW (940kW charging modules)/400kW (1040kW charging modules)
Dimension (H x W x D)	1900 x 750 x 725mm (360kw) /2070 x 1020 x 910mm (400kw)
Enclosure protection grade	IP54, IK10
Cable routing	Bottom inlet, top outlet wiring
Net weight	545kgs (360kw) / 560kgs 400kw)
Charging standard	IEC 61851-1, IEC 61851-23, CHAdeMO
Certificate	DEKRA certified CE, EN 61851-23:2014 + EN 61851-23:2014/AC:2016-06, IEC 61851-21-2: 2018, EN IEC 61851-21-2: 2021
Protection	Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection
Accessories	Cable management balancer reel
User interface
User authentication	RFID, Nayax credit card (optional), Mobile APP
Display	10” LCD touch screen
Support languages	English, Italian, Czech, Polish, Russian, Spanish, Romanian, Thai, German, French, Dutch (other languages upon request)
Network interface	Ethernet, GPRS and LTE (optional), support manually download the charging data from the local ev charger by USB disk.
Protocol	OCPP 1.6J (WS & WSS encryption), future upgradable to 2.0
Environmental
Working temperature	-30°C - +55°C, derating from 55°C to 75°C
Working humidity	5%-95% non-condensation
Altitude	<2000m
Cooling	Forced air cooling
Model type	EF400CC240/EF400CC320	EF400CC360/EF400CC400
Input
Input voltage	400Vac +/-10%, 50/60Hz, 3-phase + neutral + PE
Max. input current	583A (360kw) / 642A (400kw)
Power factor	0.99 at nominal output
Efficiency	94% at nominal output (360kw) / 95% at nominal output (400kw)
Output
Max. DC output power (single charging)	CCS-2: 240kW/320kW/360kW/400kW
Max. DC output power (simultaneous charging)	1.Connector 1: 120kW Connector 2: 120kW 2.Connector 1:160kW Connector 2:160kW 3. Connector 1:200kW Connector 2:160kW 4. Connector 1:200kW Connector 2:200kW
DC output voltage range	CCS-2: 150-1000VDC
DC output current range	CCS-2: 0-400A
Number of plugs	2
Outlet connectors	CCS Combo-2
