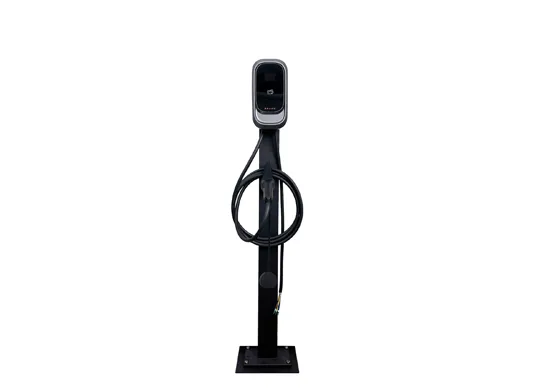

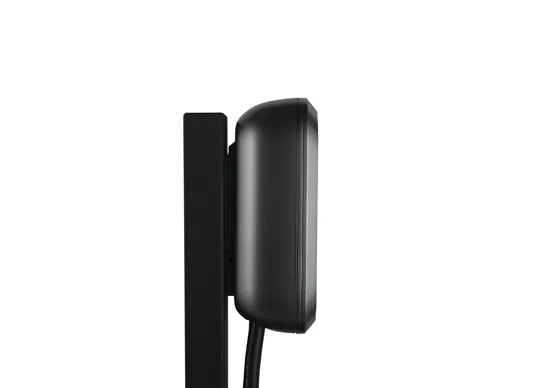

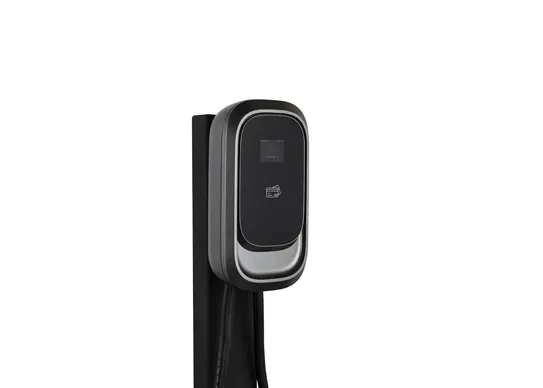

AUPINS C5 Series AC Wall-mounted Charger

Name: AUPINS C5 Series AC Wall-mounted Charger
Brand: Aupins Technology Co., Ltd.
Availability: InStock

The AUPINS C5 Series AC Wall-mounted Charger is a high-performance, one-phase and three-phase EV charging solution designed for the European market, US market, Brazil market, and all over global market. Compliant with IEC 61851-1:2017 and tested in accordance with IEC 62311:2020, EN 300328 V2.2.2:2019, EN 300330 V2.1.1:2017, EN 301489-1 V2.2.3:2019, EN 301489-3 V2.3.2:2023, EN 301489-17 V3.2.4:2020, EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021, EN IEC 61851-21-2:2021, EN IEC 61851-1:2019, BS EN IEC 61000-6-1:2019, BS EN IEC 61000-6-3:2021, BS EN IEC 61851-21-2:2021, and BS EN IEC 61851-1, available in 7kW, 11kW, and 22kW versions, it features a compact wall-mounted design, robust IP55 protection, and a user-friendly 2.4-inch screen interface. Built-in safety mechanisms include overvoltage, overcurrent, and leakage protection. With flexible current adjustment and RFID activation, the AUPINS C5 Series AC Wall-mounted Charger is ideal for residential, workplace, and commercial charging environments.

Get a Quote 

Features of AUPINS C5 Series AC Wall-mounted Charger

Flexible Power Options
Supports 7kW, 11kW, and 22kW charging capacities with adaptable 16A/32A/50A output, suitable for various power grids and EV types.

Reliable All-Weather Operation
Operates safely under harsh conditions with IP55 protection, wide temperature range (-30℃ to +50℃), and 5%–95% humidity tolerance.

Safe & Standard-Compliant
Built to IEC 62196-2 standards with TUV, CB, CE, UKCA, RCM, TR25, RED, FCC, RoHS, REACH, etc. certifications, ensuring high safety and compatibility across the EU and global market.

Versatile Application Scenarios
Ideal for residential, public, and commercial charging environments, with wall-mounted design and natural cooling for easy, maintenance-free operation.

Tailored for Global Markets / Market Compatibility

AUPINS C5 Series

Input Voltage: AC 230V / AC 400V

Input Frequency: 50Hz

Maximum Power: 7kW / 11kW / 22kW

Output Voltage: AC 230V / AC 400V

Output Current: 16A / 32A(based on model)

Applicable Scenarios: Home charging, Public Parking, Commercial charging

Working Humidity: 5% – 95%, non-condensing

Working Temperature: -30℃ to +50℃

Working Altitude: ≤ 2000 m

Protection Level: IP55

Cooling Mode: Natural Cooling

Product Certification: TUV, CB, CE, UKCA, RCM, TR25, RED, FCC, RoHS, REACH, etc.

Why Choose The AUPINS C5 Series AC Wall-mounted Charger?

The AUPINS C5 Series AC Wall-mounted Charger delivers reliable 7kW/11kW/22kW EV charging for home, workplace, and commercial use. It features IP55 protection, RFID control, and built-in safety functions. Certified toTUV, CB, CE, UKCA, RCM, TR25, RED, FCC, RoHS, REACH, etc., it's a smart and durable choice for Type 2, GBT,SAE J1772 Type 1, and NACS J3400 EV charging.

AUPINS C5 Series AC Wall-mounted charger
Specification			Model C5
Connector and Electrical Performance	Input Voltage / Output Voltage	110~250V / 380~450V AC±15%		2.4-inch LCD Color Screen
	Input Frequency	50 / 60Hz
	AC Power Output Rating	7kW / 11kW / 22kW
	Output Current	16A /32A/50A
	Power Plug Options（Socket）	N/A
	Charging Connector Type	Type1/Type2/ Tesla/GBT + 5M charging cable
Safety Features	Ingress Protection	IP55
	Impact Protection	N/A
	Electrical Protection	Over/Under voltage protection, Surge protection, Over temperature protection Leakage Protection, Lighting Protection Over current protection
	RCD Type	Type A AC 30mA + DC 6mA
	Environment Temperature	-30℃ to +50℃
	Certifications	TUV, CB, CE, UKCA, RCM, TR25, RED, FCC, RoHS, REACH, etc.
Function	Current Adjusting	Yes
	Ethernet/WIFI/4G/Bluetooth	Yes
	LED Indicator Light	Yes
	LCD Display Screen	Yes
	Touch Button	Yes
	Time Setting	Yes
	Time Delay Setting	Yes
