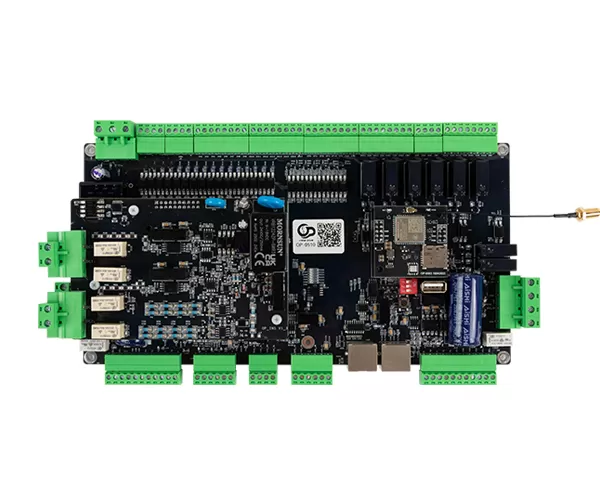

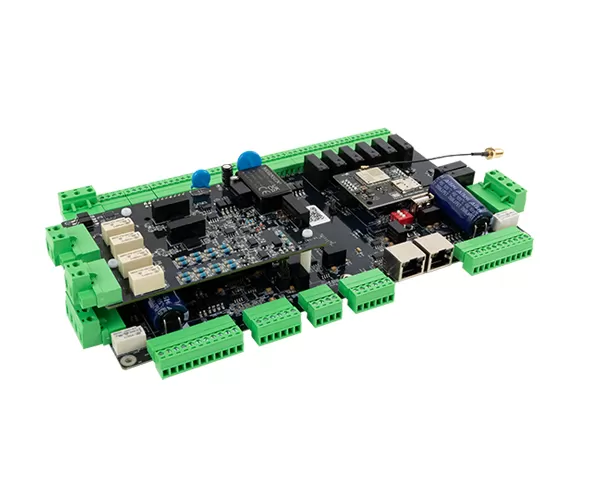

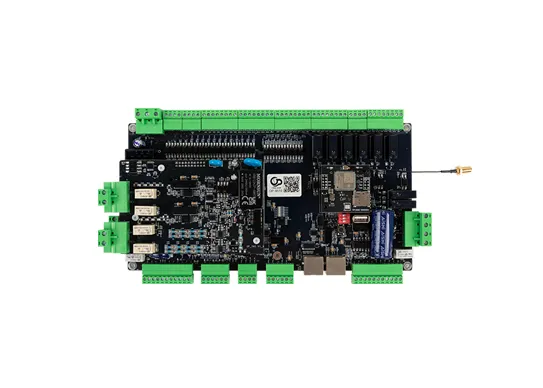

AP-0510 EV DC Charging Pile Controller Series

1. Main control board size

The external dimensions are 305mm(length)×134mm(width)×52mm(height).

2 Product Functions

(1) It can complete the charging interaction with the BMS, control the charging status of the charger, collect operation data, and automatically shut down in abnormal conditions.

(2) It can be applied to various DC charging piles such as one-machine one-charge type, one-machine time-sharing dual-charge type, one-machine bus-connection dual-charge type,

 one-machine full power distribution dual-charge type, rectifier split type, and group charging type.

(3) It is equipped with an electronic lock control for the charging gun and temperature detection. The detection and control of each charging gun work independently.

(4) Compatible with power modules from Shenghong, Yingfeiyuan, Youyou, Yonglian, Tonghe, Xingyuan Borui, etc.

(5) Compatible with Diwen, Xinruida and Xinxian touch screens to complete human-computer interaction functions;

(6) Support serial port card readers to complete the card swiping billing function;

(7) Integrated 2-channel battery voltage collection function;

(8) Integrated 2-channel control and guidance functions;

(8) Integrated 2-channel insulation detection function;

(9) It can record charging data, with a maximum of 500 charging data records.

(10) It has a background communication function and can communicate wirelessly with the background monitoring system to transmit status and related data. Currently, it supports

monitoring platforms such as Cloud Fast Charging, Dakake Cloud, Weijing Cloud, and Xiaoju.

(11) Integrated Ethernet function; (Optional

(12) Integrate and expand 2G and 4G functions. (Optional

(13) Integrated NFC card reader function. (Optional

(14) The main control board supports direct connection of 12V/24V auxiliary sources without the need for additional intermediate relays.

3 Product Features

(1) High integration and small size; It integrates opening in, opening out, communication, analog quantity, insulation detection and control guidance, greatly reducing the space

occupied by the pile body.

(2) High electromagnetic compatibility: High EMC stability, up to level 4 electromagnetic compatibility;

(3) Support for multiple network backends: Can quickly deploy and monitor its own charging network;

(4) Strong compatibility: It can be compatible with all vehicle models that comply with the new and old national standards of GB/T 27930. It is compatible with LCD screens from

 mainstream manufacturers on the market. It is compatible with all electricity meters that comply with DL/T 645 and MODBUS protocols.
