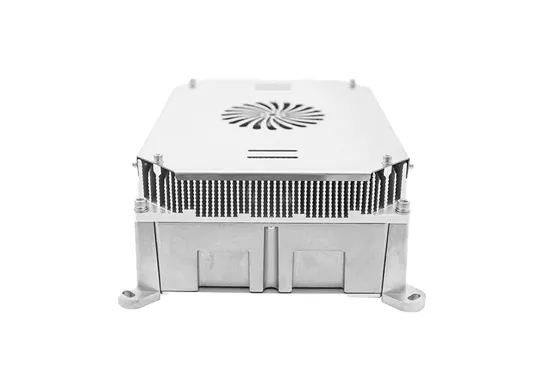

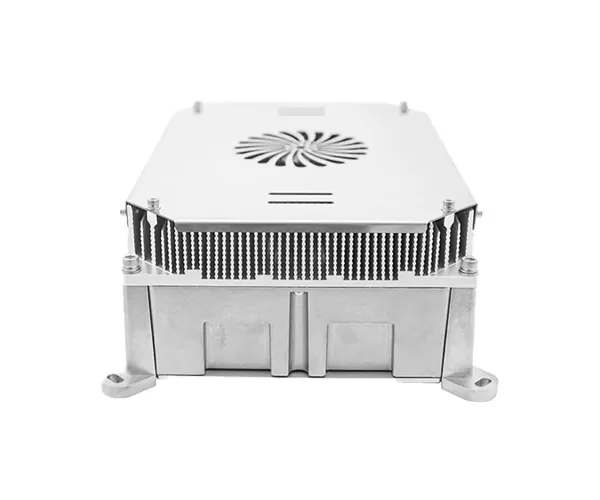

6.6kW On-board Charger Assembly

Name: 6.6kW On-board Charger Assembly
Brand: Aupins Technology Co., Ltd.
Availability: InStock

The AP 6.6kW Air-Cooled On-board Charger Assembly is a high-performance, intelligent, and universal charging solution specifically developed for A+ class pure electric passenger vehicles and commercial EVs.

The system adopts fully digital control technology for flexible and intelligentoperation, enhanced protection, and strong system robustness. Utilizing advanced phase-shifted PWM zero-voltage and zero-current soft-s witching technology combined with high-performance SiC devices, the charger ensures excellent stability and achieves a peak efficiency ofover 94%.

With an IP67-rated die-cast aluminum housing and automotive-grade components, the charger delivers high power density, lightweight design, and reliable performance across various EV charging applications.

Get a Quote 

Features of 6.6kW On-board Charger Assembly

Modular Design Digital Control Active PFC
High effeciency
CAN Communication
IP67 Rated
Comprehensive Protection

Multiple Application of 6.6kW On-board Charger Assembly

1. A+class Electric Car

2. Electric Tricycle

3. Sightseeing Vehicle

4. Industrial Vehicle

5. E lectric Tools

Model Number
Vehicle power suppply type	Vehicle on-board charger
Model number	AP1011	AP1012	AP1013	AP1014	AP1015	AP1016
Input Characteristic
Input Voltage Range	90VAC~265VAC
Input frequency range	46~65Hz
Starting Impule Current	≤32A
Input power factor	≥0.99 (@220Vin, Pomax)
Rated AC frequency	50Hz
Output Characteristic
Rated Output Power	6600W
Rated Output Voltage	720	540	360	144	108	80
Output Voltage Range	0~850	0~720	0~500	0~190	0~140	0~105
Output Current Range	0~9	0~12	0~18	0~44	0~60	0~80
Voltage/Current Regulation	±1% & ±5%
Output Response Time	≤200mS
Typical Efficiency	≥94%	≥94%	≥94%	≥92%	≥92%	≥92%
Protective Characteristic
Over and Under Voltage Protection	Input over and under voltage shutdown can be self-recovery,output over andunder voltage shutdown can be self-recovery
Output Reverse Connection and Short Circuit Protcetion Output	Output short circuit and reverse connection shutdown can beself-recovery
Over Temperature Protection	When the heat sink temperature is higher than 75°C, it will reduce the output power. And it will disconnect the circuit when the temperature is higher than 95°C. It will restore the output when the charging temperature is lower than 85°C
Enivromental Condition
Operating Ambient Temperature	-20°C~ +85°C
Relative humidity	5%~95%
Dust proof and waterproof	IP67
Cooling Method	Forced-Air Cooling
Communication Function	CAN network
Charging Function	Receive charging instructions to charge normally; No command charger is in standby state
Others
Operating Noise	≤60dB
Product size (mm)	204352126
Product Weight	≤8kg
