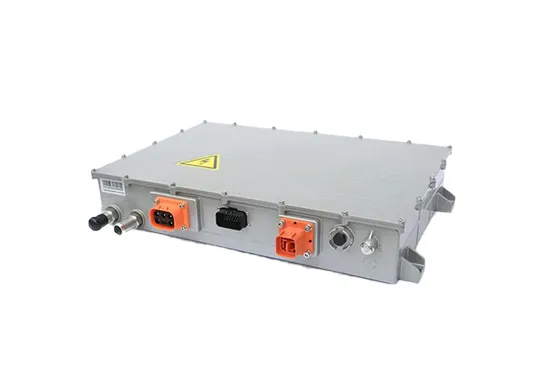

20kW On-board Charger Assembly

Name: 20kW On-board Charger Assembly
Brand: Aupins Technology Co., Ltd.
Availability: InStock

AUPINS series vehicle on-board-charger is designed for new lithium electric logistics vehicles, buses, construction machinery and other new energy models research and development of a high-power dense and high-efficiency charger, using modular, standardized, universal ideas to design and develop.

The charger supports three-phase AC input, and the DC output voltage is adjustable in the full range.

Get a Quote 

Features of 20kW On-board Charger Assembly

Modular Design Digital Control Active PFC

High effeciency

CAN Communication

IP67 Rated

Comprehensive Protection

19.8KW ON BOARD CHARGER is designed with full digital control technology, which has flexible and intelligent control, good protection characteristics and strong system robustness. Its own microprocessor communicates with the monitoring unit, and the parameters in the machine CAN be set or adjusted by the upper monitoring unit through the CAN interface.

It has multiple protection functions such as input over-voltage protection, output over-current protection, output over-voltage protection, output short-circuit protection, and over-temperature protection.

The AP 20kW Liquid-Cooled On-board Charger Assembly is designed for new lithium electric logistics vehicles, buses, construction machinery and other new energy models research and development of a high-power dense and high-efficiency charger, using modular, standardized, universal ideas to design and develop.

The system adopts fully digital control technology for flexible and intelligent operation,enhanced protection, and strong system robustness. The charger supports three-phase AC input, and the DC output voltage is adjustable in the full range.

With an IP67-rated die-cast aluminum housing and automotive-grade components, the charger delivers high power density, lightweight design, and

reliable performance across various EV charging applications.

Multiple Application of 20kW On-board Charger Assembly

1. Electric Motorcycle

2. Electric Bus

3. Logistics Vehicle

4. Construction Machinery

5. Electric Tools

Charger Type:Water-cooled isolation on board charger

Input Characteristic

Rated Input Voltage:220VAC/380VAC

Input Voltage Range :90～265VAC/152~456VAC

Rated AC frequency:50Hz/60Hz

Input frequency range :45～65Hz

Starting Impulse Current :≤80A@single phase；≤32A@three phase

Input power factor≥0.99（Pomax）

Rated Output Power:19.8KW

Environmental Condition

Operating Ambient Temperature:Liquid temperature of the liquid-cooled system≤65℃

Storage temperature Humidity IP Grade:-40～95℃

Cooling Function:5%～95%

Communication Function:IP67

Charging Function:liquid-cooled

Protective Characteristic

Over and Under Voltage Protection:Input over and under voltage shutdown can be self-recovery, output over and under voltage shutdown can be self-recovery.

Output Reverse Connection and Short Circuit Protection:Output short circuit and reverse connection shutdown can be self-recovery

Over Temperature Protection:When the heat sink temperature is higher than 75 ° C, it will reduce the output power. And it will disconnect the circuit when the temperature is higher than 95 ° C. It will restore the output when the charging temperature is lower than 85 ° C.

Model Number
Vehicle power suppply type	Vehicle on-board charger
Model number	LK1916	LK1915	LK1914	LK1913	LK1912	LK1911
Input Characteristic
Input Voltage Range	90VAC~265VAC / 152VAC~456VAC
Input frequency range	46~65Hz
Starting Impule Current	80A@single phase；32A@three phase
Input power factor	≥0.99（220Vin, Pomax）
Rated AC frequency	50Hz / 60Hz
Output Characteristic
Rated Output Power	19.8kW
Rated Output Voltage	80	108	144	360	540	700
Output Voltage Range	0~105	0~135	0~180	0~500	0~720	0~950
Output Current Range	0~240	0~180	0~132	0~54	0~36	0~27
Voltage/Current Regulation	±1% & ±5%
Output Response Time	≤200mS
Typical Efficiency	≥90%	≥90%	≥92%	≥94%	≥94%	≥94%
Protective Characteristic
Over and Under Voltage Protection	Input over and under voltage shutdown can be self-recovery,output over andunder voltage shutdown can be self-recovery
Output Reverse Connection and Short Circuit Protcetion Output	Output short circuit and reverse connection shutdown can beself-recovery
Over Temperature Protection	When the heat sink temperature is higher than 75°C, it will reduce the output power. And it will disconnect the circuit when the temperature is higher than 95°C. It will restore the output when the charging temperature is lower than 85°C
Enivromental Condition
Operating Ambient Temperature	-20°C~ +65°C
Relative humidity	5%~95%
Dust proof and waterproof	IP67
Cooling Method	Liquid Cooled
Communication Function	CAN network
Charging Function	Receive charging instructions to charge normally; No command charger is in standby state
Others
Product size (mm)	550250100
Product Weight	≤25kg
